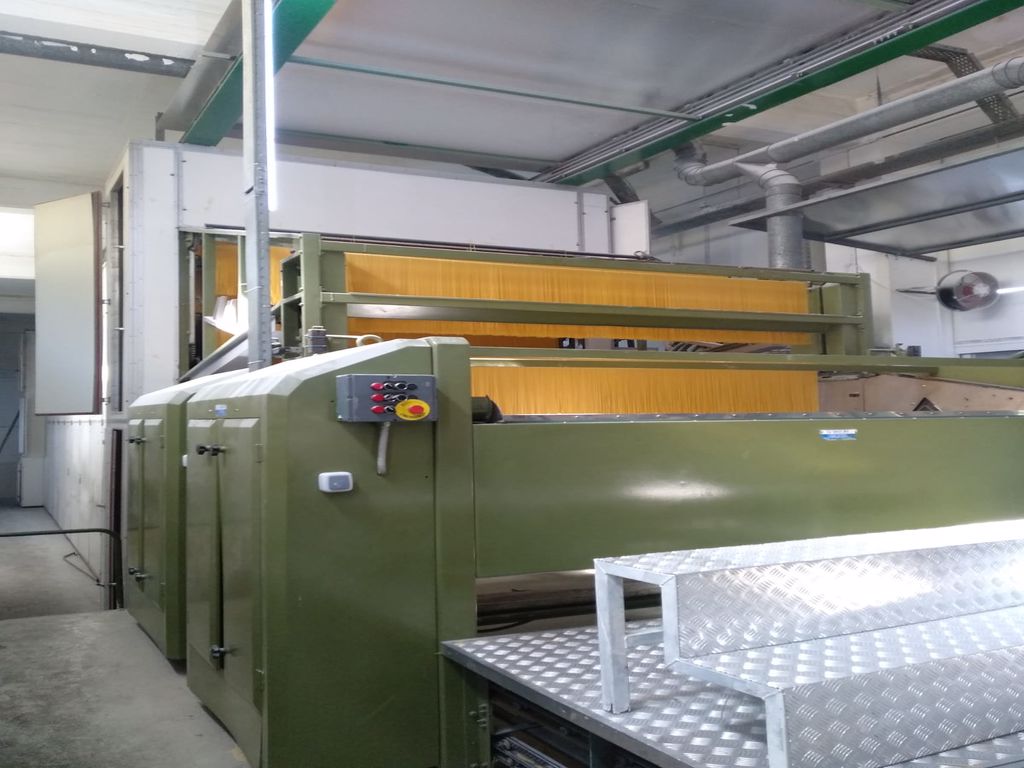

General Construction; high resistance stainless steel structure and its structure is strengthened for vibration. Main structure is placed on elevated prop; all lines are provided against direct contact to floor. Dryers are geared cover made by isolated polyurethane and stainless steel.
Capacity : 1000 Kg/Hour Dry Pasta Installed Motor Power : 110 KW Absorbed Electricity Power : 88 KW/H Installed Power for Dryer : 300.000 Kcal/Hour at 110°C - 130°C Absorbed Power for Dryer : 240.000 Kcal/Hour at 110°C - 130°C Cooled Water : 5-12°C with 60.000 Kcal/Hour Stick Lenght : 2000 mm
Minimum Building dimensions needed: Length : 50 meter Width : 10 meters, Height : 7 meters
Equipment included in HMX 1000 long cut pasta line: 1. AUTOMATIC PRESS 2. AUTOMATIC PRESS 3. COMBINED ELEVATORS 4. 30 MINUTES BUFFER STORAGE SYSTEM 5. AUTOMATIC DRYERS ( TWO DRYERS IN ONE CABIN AS COMBINED DRYER WITH CONTINIUOS ALLAMINIUM and STAINLESS STEEL CONVEYOR BELTS) 6. SILOS AND SILO CONVEYORS SYSTEM 7. VACUUM PUMP WITH OIL SYSTEM 8. ELECTRIC PANEL AND AUTOMATION 9. SUPERVISION OF ASSEMBLY (INSTALLATION) 10. FINAL TEST RUN 11. TECHNICAL DATAS 12. DRYING DIAGRAMSClick to get offer
